Q1: What is the mechanical difference between an Anchor Shackle and a Chain Shackle?

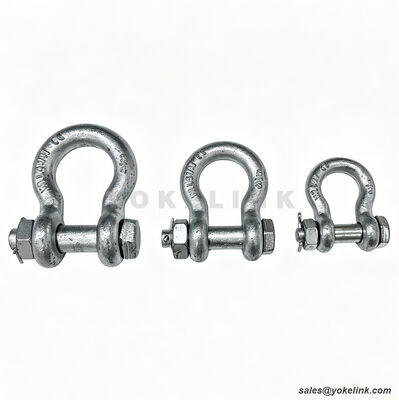

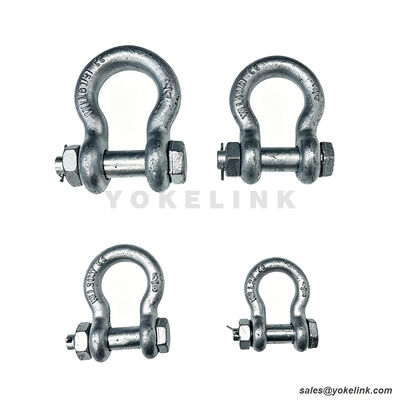

A: The difference is the shape of the body. An Anchor Shackle (Bow Shackle) features a large, O-shaped rounded bow. This allows it to take loads from multiple angles or connect multiple fittings at once. A Chain Shackle (D-Shackle) has a narrow, straight U-shaped body, designed strictly for straight line, in-line pulling. In overhead line construction and guying, Anchor Shackles are heavily preferred due to their versatility.
Q2: When should I choose a Screw Pin vs. a Bolt-Type Anchor Shackle for utility poles?

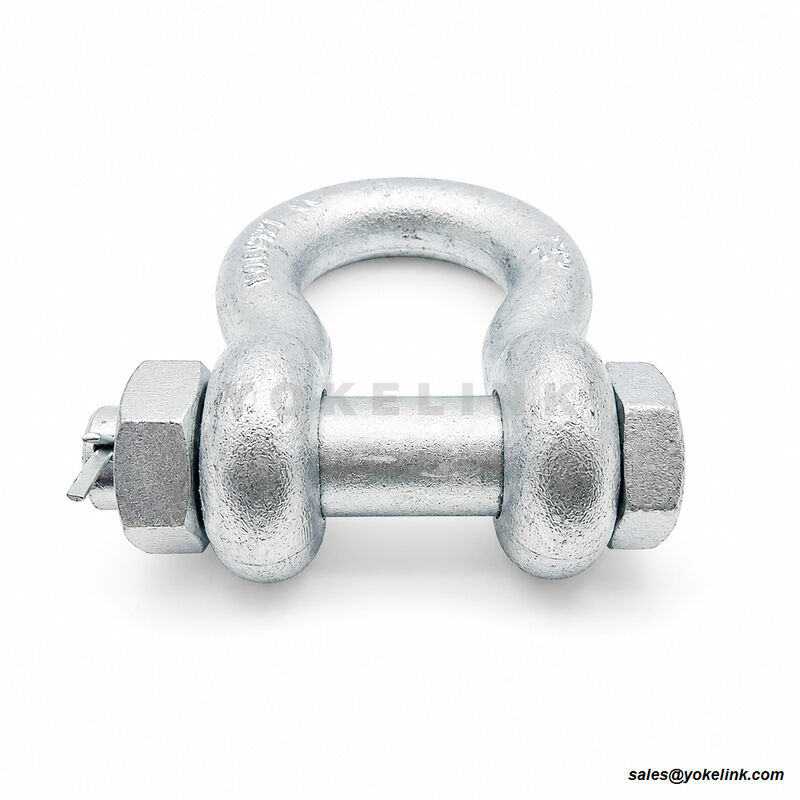

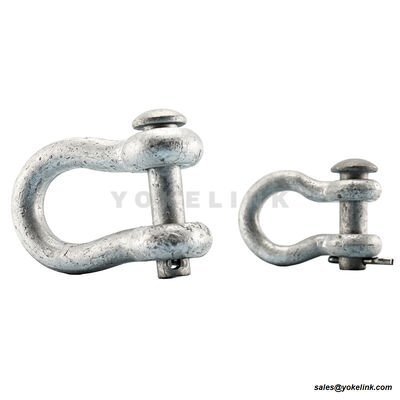

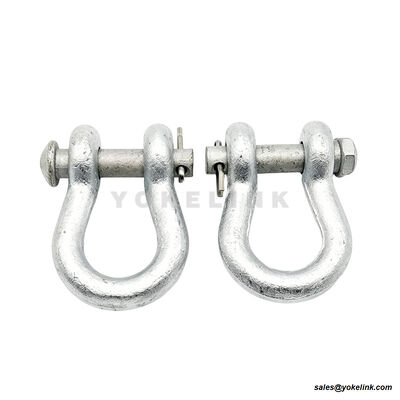

A: Screw Pin shackles are ideal for temporary applications or lines that require frequent maintenance, as the pin can be removed quickly. However, for permanent overhead lines or tower guying, you must use a Bolt-Type shackle (which uses a bolt, hex nut, and stainless steel cotter pin). High winds cause continuous line vibration, which can slowly unscrew a screw pin, whereas a bolt-type shackle physically locks the assembly in place, preventing catastrophic drops.
Q3: What does RR-C-271 Type IVA compliance mean for Yokelink shackles?
A: RR-C-271 is the ultimate Federal Specification for shackles in the Americas. Type IVA specifically designates a drop-forged anchor shackle. Compliance guarantees that the steel has gone through rigorous metallurgical checks, possesses an exact physical dimension range, and fulfills the strict safe load-to-destruction safety factors required by major engineering procurement corporations (EPCs).
Q4: Can an anchor shackle be side-loaded, and does it reduce the Working Load Limit (WLL)?
A: Yes, because of its rounded bow, an Anchor Shackle can handle angular or side-loading, but its WLL must be derated based on the angle of stress. According to ASME B30.26, a 45-degree angle load reduces the shackle's efficiency to 70% of its rated WLL, and a 90-degree side-load reduces it to 50%. Chain (D) shackles should never be side-loaded.
Q5: Why is the pin on your hot-dip galvanized shackles sometimes painted a distinct color?
A: In the international rigging and utility industries, many premium manufacturers paint the pins of forged shackles to serve as a quick visual indicator of the shackle's grade or brand authenticity in the field. All Yokelink shackle pins are fully Hot Dip Galvanized to ASTM A153 beneath any marking layer to ensure that corrosion resistance is never compromised, matching the heavy protection of the shackle body.
Value-Added Supply Chain Services
1. Blanket Order & Free Warehousing
Yokelink offers Blanket Order programs: Place an annual order to lock prices, we manufacture your total volume and hold stock in our facility free of charge. Split Shipments: Schedule partial shipments (e.g., monthly or quarterly) based on your project progress. You get the benefits of just-in-time delivery without the risk of shortages.
2. DDP Shipping (USA Duties Included)Landed Cost Certainty:
We handle the complex logistics. Our DDP (Delivered Duty Paid) service covers sea freight, US Customs clearance, and Section 301 tariffs. The price we quote is the final price delivered to your door / Warehouse.
3. Free Sample Program
We offer Free Samples to qualified commercial buyers for testing and approval.
4. Empowering Latin America's Utility Infrastructure
We have established a robust supply chain and a proven track record across Brazil, Mexico, El Salvador, Honduras, Nicaragua, Ecuador, Bolivia, Chile, Peru, Uruguay, Guatemala, Argentina, and the Dominican Republic. From standard distribution lines to complex 34.5 kV double-circuit transmission projects, leading utility contractors trust Yokelink for uncompromising quality and on-time delivery.
