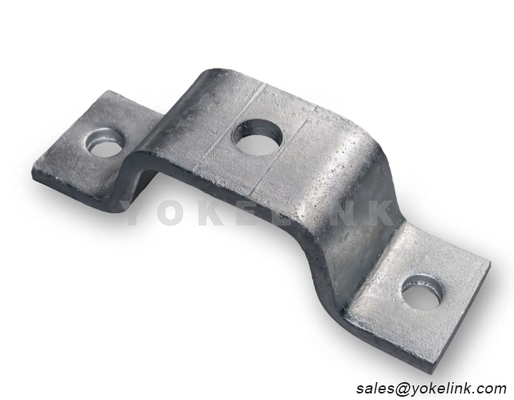

Types of Post Insulator Brackets
There are different types of post insulator brackets to suit different applications including:
Curved base Brackets:
These brackets have a pole-shaped back that allows for mounting of post insulators in a horizontal position with a 5-degree up sweep commonly referred to in Lineman’s slang as “chicken wing”. Curved base brackets are versatile and can be used for both armless construction and phase-over-phase mounting.
Side Mounted Brackets:
Side-mounted brackets are used to mount post-type insulators to the side of utility poles in a horizontal position with a 15-degree up sweep. Made with high-quality 3/8″ x 21/2″ bar steel and hot dip, side-mounted brackets are designed to facilitate a stringing block.
Uni-Brackets:
Uni-brackets are used to mount three post-type insulators on top of the utility pole without requiring a cross arm. They give a clean appearance and only require two 3/4″ bolts for attachment making them cost-effective and efficient. Uni-Brackets fit poles ranging in diameter from 6″ to 81/2″ and can be adapted to a variety of distribution utility poles.
Buy Insulator Bracket From Yokelink
The Yokelink brand of insulator hardware is a comprehensive offering that includes pins and brackets for crossarm, pole top and side mounting of pin or post type insulators. Also included are line post studs, used with post type insulators. All products are designed and manufactured in compliance with applicable electric utility industry standards.
