Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer

Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer

    • Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer
    • Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer
    • Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer
    • Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer
  • Hardened Beveled Washers ANSI B18.2.6 F436 Structural Hardened Washer

    Product Details:

    Place of Origin: China
    Brand Name: YOKELINK

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 Pieces
    Price: USD0.5~USD0.95
    Packaging Details: Carton & Pallet
    Delivery Time: 30-45 days
    Payment Terms: T/T
    Supply Ability: 50,000 PCS per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Steel, Iron In Any Grade Finishing: Plain / Hot Dip Galvanized
    Size: 1/2",3/4",1/2",5/8",1-1/4",7/8"

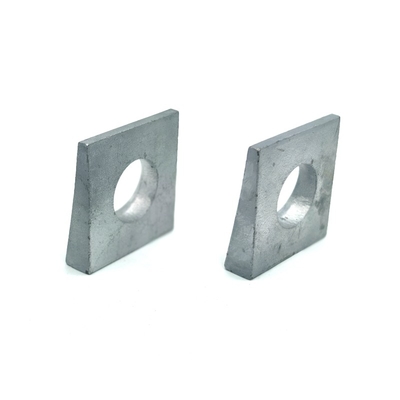

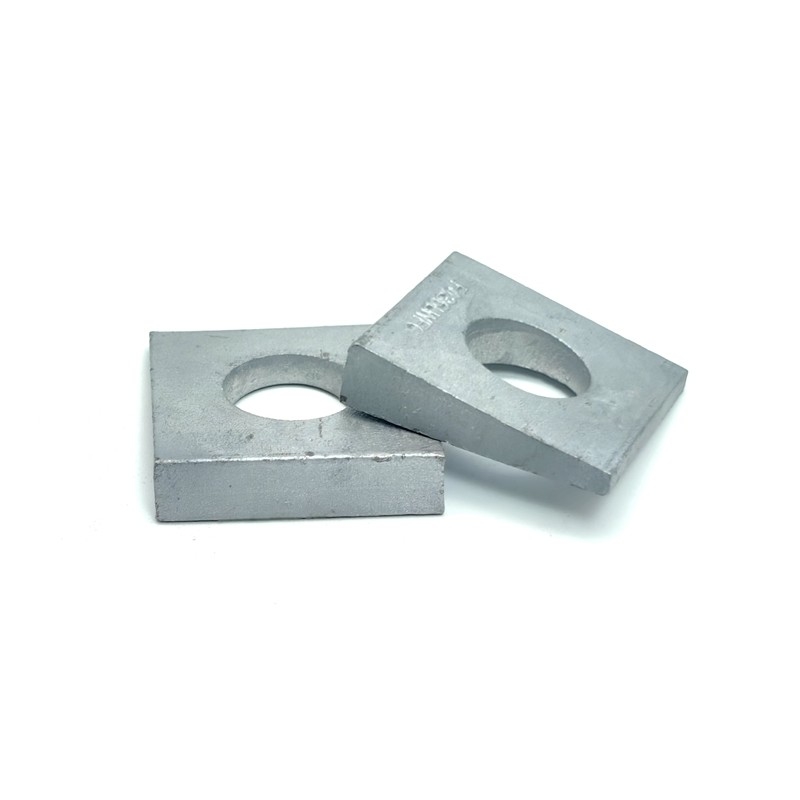

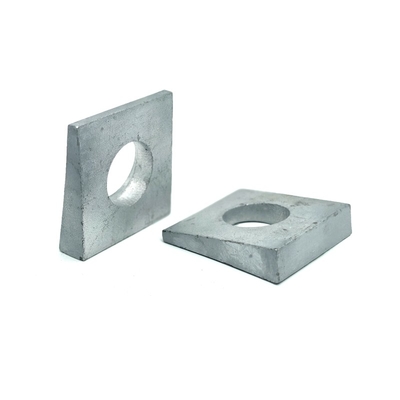

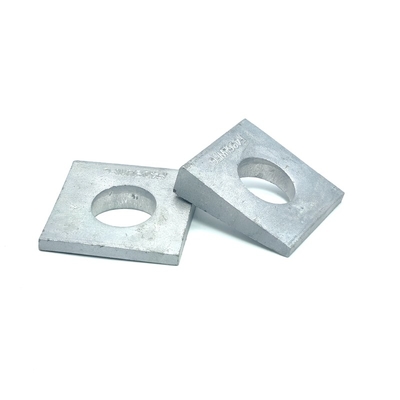

    ASTM F436 Hardened Beveled Washer


    astm F436 hardened BEVELED WASHER

    Yokelink is a Manufacturer of Beveled Washers, our beveled washer comes in square and circular shapes which per ASTM F436 specification.


    What size of Beveled Washers we have?


    The Beveled washer in nominal sizes we have 1/2" beveled washer, 5/8" beveled washer, 3/4" beveled washer, 7/8" beveled washer, 1" beveled washer and 1 1/4 beveled washer per ASTM F436 and ASTM F436M. Also available meric size of Beveled washer per DIN 434, M12 Beveled washer to M36 beveled washer.


    What is beveled washer application?


    The beveled washer usually used with American standard beams and channels. Beveled Washers are designed for leveling and shimming purpose, and beveled washer are commonly used when bolting through the flanges of L-beams. These beveled washers are angled spacing components that are used to correct the uneven or imperfect surfaces.


    What is the material of Beveled washer made from?

    Hardened beveled washer astm F436 Hot Dip Galvanized  34 58 malleable iron plain (3)

    Beveled washers can come in a variety of materials . Yokelink Range of Beveled Washers are made from medium carbon steel and then hardened the beveled washer as per ASTM F436 and ASTM F436M specifications. Also our beveled washer available for material of Stainless Steel, Malleable Cast iron per your request.


    What is the different with Beveled washer vs Flat Washer?


    The Beveled Washers are intended to recompense for lack of parallelism in structural applications involving american standards. Unlike flat washers which are used for parallel mating surfaces, beveled washers are used for non-parallel surfaces. A beveled washer is a special type of washer that has a sloped side and a flat side. The sloped side of beveled washer can accommodate for different installation angles and allows the two non-parallel faces to be mated and aligned with a stable and tight fit.


    What is the beveled washer finish?


    The Beveled washers can come in a variety of surface treatments. Oftentimes, Yokelink metal beveled washers will be surface treated, so these beveled washer can be used outdoors and have a high degree of environmental resistance. Some common metals and coatings used for beveled washers are listed below:
    1. Plain Iron, with light protective oil
    2. Hot dipped galvanized per ASTM A153
    3. Plain, 304 or 316 stainless steel
    4. Zinc Plating
    5.

    Beveled Washer Specification:


    F436 beveled washer specification
    Hardened beveled washer astm F436 Hot Dip Galvanized  or plain specification

    Other size and customize beveled washers are available. 304 & 316 Stainless Steel beveled washer also are available per the request. When you need beveled washer, refer to above our beveled washer specification. We offer in a full selection of sizes beveled washer, provide the bolt diameter or part number to get a quote on these beveled washers, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
