EN 14399-4 Heavy Hex Bolts High-Strength Structural Bolting Assemblies For Preloading
Product Details:
| Place of Origin: |
China |
| Brand Name: |
YOKELINK |
| Model Number: |
DIN6914,EN14399 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000 pieces |
| Price: |
USD0.35~USD2.9 |
| Packaging Details: |
Carton & Pallet |
| Delivery Time: |
30-45 days |
| Payment Terms: |
T/T |
| Supply Ability: |
50,000 PCS per month |
Contact Now
Detailed Product Description
| Material: |
Carbon Steel |
Standard: |
DIN6914,EN14399 |
| Finishing: |
HDG/Black/zinc Plated |

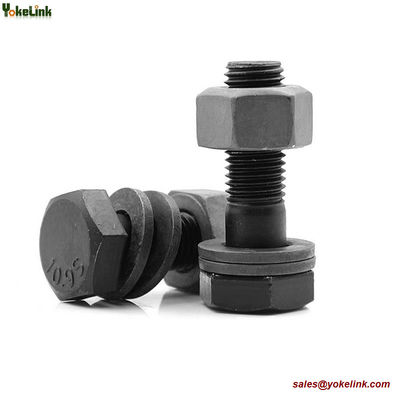

EN 14399 DIN 6914 ISO 7412 DIN 7990 Heavy Structural Bolt
Yokelink Structural Bolts are a specialized heavy type of hex bolt intended for use in large structures, such as buildings and bridges.This bolt is designed to withstand the loads of steel-to-steel structural connections. They contain a flat, washer-faced bearing surface and a chamfered thread point. Galvanized plating protects the bolt from corrosion; typically used in outdoor applications.
The EN 14399 standard has been developed for high strength prestressed fasteners.The screws, nuts and washers composing the HV sets can be found in parts 4 and 6 of this standard. In compliance with the European standard, hot dip galvanized HV nuts are always treated with a special molybdenum disulphide lubricant giving this characterisƟ c black color. An HV set consists of the following elements: • 1 HV 10.9 hexagon head screw, hot-dip galvanized, in accordance with EN 14399–4 • 1 hexagonal nut HV 10, hot-dip galvanized, in accordance with standard EN 14399–4 • 2 HV 300–370 HV washers, hot-dip galvanized, in accordance with EN 14399–6
Hot Forging Bolt
We make Hot Forming/Forged Bolts through the Screw Forging and Hot Head Forging Machines.
The Hot Forming mostly done for Bolts having bigger diameter, longer length or special Head shape...
