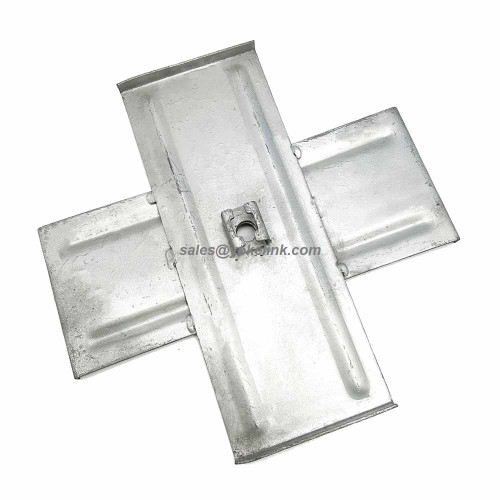

16" 20" 24'' Cross Plate Anchor Black Painted/ Hot Dip Galvanized
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Yokelink |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000pcs |
| Price: |
$8.5-$12.0 |

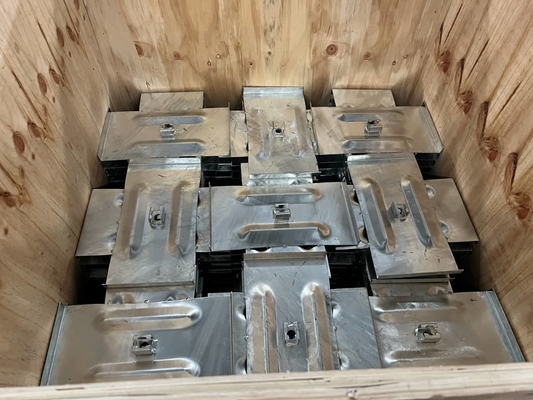

| Packaging Details: |
Carton & Pallet |
| Delivery Time: |
35~40 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
10000pcs per month |
Contact Now
Detailed Product Description
| Material: |
Carbon Steel |
Finish: |

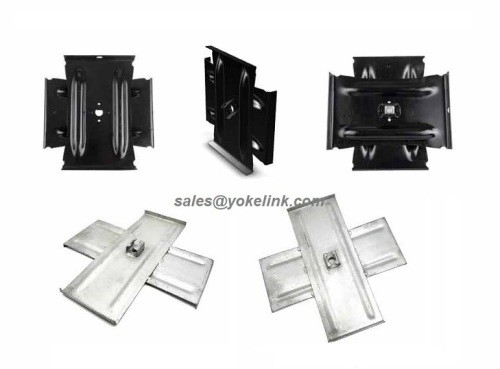

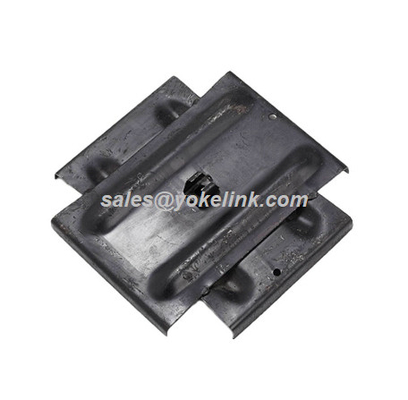

Black Painted / Hot Dipped Galvanized |
| Plate Size: |
16''x16'', 20''x20'', 24''x24'' |
What is Cross Plate Anchors for?
Cross Plate Anchors are made for installation in augured holes. The cross plate anchor is formed by two structural plates shaped for reinforcement. A retainer on the bottom of the anchor holds the nut from the Forged eye rod (sold separately).
During installation, a hole to the size listed on the table for cross plate anchors is augured to a depth based on the rod length. The hole is then undercut so that the anchor can be positioned at a 90 degree angle to the guy wire. A rod trench is cut to the guy angle. The width of the trench should be just sufficient to accommodate the rod. The rod is secured to the plate anchor and placed in the excavated hole and trench. The hole is then refilled and tamped.
Cross plate anchors are coated with a rust inhibitor.
Cross Plate Anchors Specification
| Part No. |
Anchor Hole |
Rod Size |
Area |
Weight |
| Inch |
Inch |
Sq. In. |
Kg / Pcs |
| E0416 |
16 |
5/8 or 3/4 |
150 |
3.5 |
| E0420 |
20 |
5/8 or 3/4 or 1 |
250 |
7.3 |
| E0424 |
24 |
3/4 or 1 or 1-1/4 |
400 |
15 |
Cross Plate Anchors Features

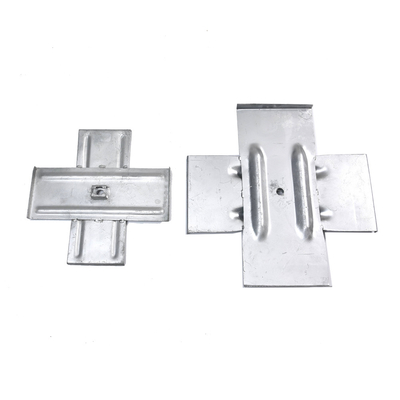

The cross plate anchor is constructed from solid, hot-dipped galvanized steel, with ridged cross plate rims for added resilience. The anchor is also coated in a rust inhibitor for extra durability. To pass quality control all cross plate anchors must meet ASTM specifications.
The anchor can be manually operated by an ‘eye’ at the upper end. A nut retainer is placed on the flattened bottom of the cross plate to enable the anchor to be fixed securely into place once installed.
Because the width of the hole does not negatively affect the installed anchor’s holding capacity, their installation does not require specialist anchoring machinery - the hole can be prepared by the same augers used to install utility poles.
How does Cross Plate Anchors works?
Cross Plate anchors are designed to be inserted diagonally against the side of a bored or drilled hole, one which has already been undercut to allow the anchor to sit at a 90-degree angle to the guy wire.
Once an additional, suitably sized trench is added to allow for the placement of the Anchor rod, the cross plate anchor can be installed. The cross plate at the lower end of the anchor digs into the internal soil mass, with a nut retainer securing the anchor firmly in place. The anchor can then be operated via the upper end as required.
