Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware

Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware

    • Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware
    • Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware
    • Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware
    • Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware
  • Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware

    Product Details:

    Place of Origin: China
    Brand Name: YOKELINK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pieces
    Price: USD0.1~USD0.25
    Packaging Details: Carton & Pallet
    Delivery Time: 30-45 days
    Payment Terms: T/T
    Supply Ability: 50,000 PCS per month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Finishing: HDG Or Zinc Plating

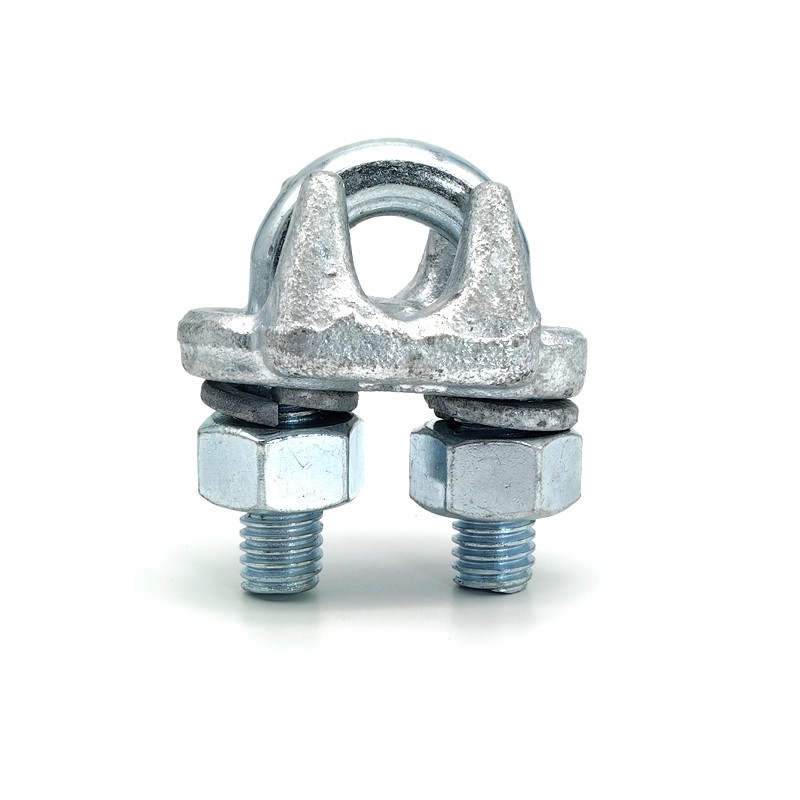

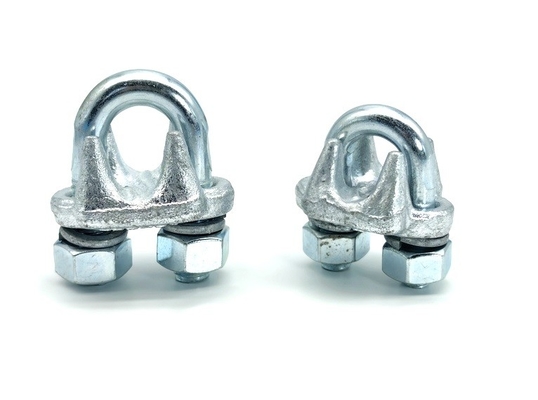

    Drop Forged Wire Rope Clip


    Yokelink Drop Forged Traditional Style and Fist Grip Style wire rope clips are the strongest and most durable type of clips that we offer. These clips are the best choice in critical suspending, guying, and tie-down applications.

    Drop Forging is the process of heating and hammering steel to the shape desired. This allows the steel’s grain structure to be consistent and conform to the shape of the forged item. Cast and malleable wire rope clips may fracture under heavy use due to the steel’s random grain structure created during manufacturing.


    Drop Forged Wire Rope Clip Features:


    1. A heavy duty means of securing down guys and wire rope.

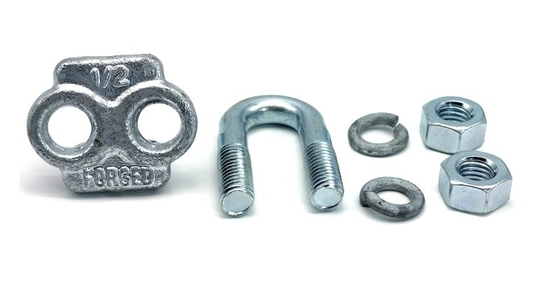

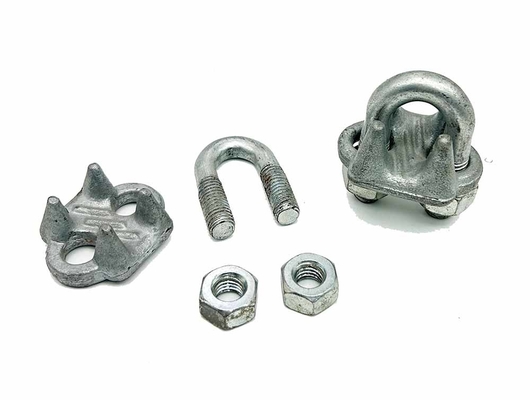

    2. Comprised of a Malleable Iron base, “U” bolt, and two hex nuts.
    3. All components are hot dip galvanized to meet ASTM Specification A153.

    Wire Rope Clip Application (3)

    What is Wire Rope Clips?


    Wire Rope Clips may also be referred to as Wire Rope Clamps, Cable Clamps, Wire Clamps, Wire Clips, U-Bolts or other local terms. These typically all refer to the same group of products.Wire Rope Clips are used to form a load bearing eye at the end of a wire rope/cable and to connect two cables together using a lap splice.

    Yokelink carries a variety of wire rope clips in different materials, styles, and coating types. These wire rope clips are suited for less than permanent applications. They can be secured with common hand tools and are a cost-effective alternative to swaged sleeves, if you only have to make a few assemblies.

    There are 3 types of Wire Rope Clips Materials: 316 Stainless Steel, Hot Dipped Galvanized, and Malleable Zinc Plated.



    Yokelink Wire Rope Clip Specification

    Wire Rop Clip Wire Rope Clip For Securing Down Guys HDG A15
    Drop Forged Wire Rope Clip
    Part No. Strand Size D L Weight
    Inch Inch Inch Kg / Pcs
    D0514 1/4 1/4-20 1.13 0.079
    D05516 5/16 5/16-18 1.23 0.123
    D0538 3/8 3/8-16 1.5 0.190
    D0512 1/2 1/2-13 1.96 0.315
    D0558 5/8 5/8-11 2.14 0.446


    Hot Dipped Galvanized Wire Rope Clip

    Hot Dipped Galvanized (HDG)
    Lower cost than stainless steel
    Suited for outdoor environments.
    Not as corrosion resistant as stainless steel wire rope clips.


    Drop Forged Traditional Style Wire Rope Clip & Drop Forged Fist Grip Style Wire Rope Clip


    Drop Forged Traditional Style Wire Rope Clip and Drop Forged Fist Grip Style Wire Rope Clip


    How does wire rope clips works?

    Drop Forged Wire Rope Clip (1)
    Drop Forged Wire Rope Clip (3)



    1) Loop Formation:


    The wire rope is bent to form a loop, and the loose (dead) end is positioned parallel to the standing (load-bearing) part.
    The wire rope clip is installed over both parts of the rope.


    2) Proper Placement:


    The saddle is placed on the live (load-bearing) side of the rope.
    The U-bolt is positioned over the dead end of the rope.
    This configuration ensures that the live side of the rope isn't damaged or flattened by the U-bolt.


    3) Clamping:


    The nuts on the U-bolt are tightened to clamp the rope between the U-bolt and the saddle.
    Multiple clips are often used to ensure a secure hold, especially for high-load applications. The number and spacing of clips depend on the rope's diameter.


    4) Load Testing:

    After installation, the assembly should be load-tested to ensure the clips are tight and the rope is secure.
